Aqua Ultima II - Pond Filters

Aqua UV's Ultima II "G-Series" G-Force filter provides amazingly effective and efficient biological and mechanical filtration for Koi ponds.

• Easy Setup And Assembly
• No Blower Needed - Built in Agitator Pump
• Agitator backwash system churns the media bed, breaking loose the solids
• The G-Force Filter is Pre-Seeded with Bacteria
• The Agitator is enginered to work with pumps to efficiently clean your filter. This process uses less water to backwash.
• Just Minutes To Backwash
• Internal Jets Do The Work For You
• Unique Patented Media Design
• Does Not Channel or Clump Together
• 1.5" inlet and outlet  Model Dimensions: 25-1/2" x 36"
• 2" inlet and outlet  Model Dimensions: 25-1/2" x 39"

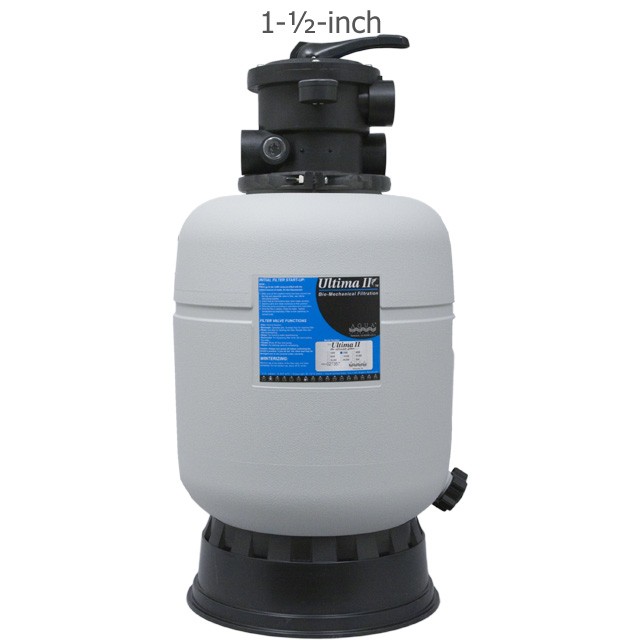

The G-Force 2000 is designed for Aquatic Life Features up to 2000 gallons. The high flow rate allows you to circulate your pond once every hour, giving you the optimal turn over rate to keep your fish healthy and your pond clear.



Aqua UV's Ultima II filter provides amazingly effective and efficient biological and mechanical filtration for Koi ponds.

• Easy Setup And Assembly
• No Blower Needed
• Just Minutes To Backwash
• Internal Jets Do The Work For You
• Unique Patented Media Design
• Does Not Channel or Clump Together
• 1.5" inlet and outlet  Dimensions: 22" x 12"

The Ultima II 1000 is designed for ponds up to 1000 gallons. The high flow rate allows you to circulate your pond once every hour, giving you the optimal turn over rate to keep your fish healthy and your pond clear.

The Ultima II is specifically engineered to meet the environmental demands of ponds. The lightweight media is designed for very high flow rates. There is a patent pending on the tubular media which has low head loss and a very high biofilm surface. The “Y” shape on the inside and wings on the outside affords a protective surface under backwashing and the patent pending backwash system will keep the media from clogging.

ULTIMA II 2000 bead filter for Koi ponds up to 2000 gallons.

No channeling * Minutes to backwash * Can handle heavy fish loads * Seeded with bacteria * Filter can be buried * Unique tubular design protects bacteria while dislodging unwanted debris.

Features:  1.5" or 2" inlet and outlet  Dimensions: 34" x 16"

ULTIMA II 4000 bead filter for Koi ponds up to 4000 gallons.

No channeling * Minutes to backwash * Can handle heavy fish loads * Seeded with bacteria * Filter can be buried * Unique tubular design protects bacteria while dislodging unwanted debris.

Features:  1.5" or 2" inlet and outlet  Dimensions: 39" x 21"

ULTIMA II 6000 filter for Koi ponds up to 6000 gallons.

No channeling * Minutes to backwash * Can handle heavy fish loads * Seeded with bacteria * Filter can be buried * Unique tubular design protects bacteria while dislodging unwanted debris.

Features: 2" inlet and outlet  Dimensions: 41" x 22.5"

ULTIMA II 10000 filter for Koi ponds up to 10000 gallons.

No channeling * Minutes to backwash * Can handle heavy fish loads * Seeded with bacteria * Filter can be buried * Unique tubular design protects bacteria while dislodging unwanted debris.

Features: 2" inlet and outlet Dimensions: 42" x 24.5"

ULTIMA II 20000 filter for Koi ponds up to 20000 gallons.

No channeling * Minutes to backwash * Can handle heavy fish loads * Seeded with bacteria * Filter can be buried * Unique tubular design protects bacteria while dislodging unwanted debris.

Features: 2" inlet and outlet  Dimensions: 48" x 30.5"

Aqua UV's Ultima II filter provides amazingly effective and efficient biological and mechanical filtration for Koi ponds.

• Easy Setup And Assembly
• No Blower Needed
• Just Minutes To Backwash
• Internal Jets Do The Work For You
• Unique Patented Media Design
• Does Not Channel or Clump Together
• 38 PSI Max
• 2" Top Mount Inlet and Outlet
• Dimensions: Approx 47 3/4" X 36"(diameter) (Plus Valve)

The Ultima II 30000 is designed for ponds up to 30000 gallons. The high flow rate allows you to circulate your pond once every hour, giving you the optimal turn over rate to keep your fish healthy and your pond clear.

Aqua UV's Ultima II filter provides amazingly effective and efficient biological and mechanical filtration for Koi ponds.

• Easy Setup And Assembly
• No Blower Needed
• Just Minutes To Backwash
• Internal Jets Do The Work For You
• Unique Patented Media Design
• Does Not Channel or Clump Together
• 50 PSI Max
• 3" Side Mount Inlet and Outlet
• Dimensions: Approx 49" X 39-3/4"(diameter) (Plus Valve)

The Ultima II 30000 is designed for ponds up to 30000 gallons. The high flow rate allows you to circulate your pond once every hour, giving you the optimal turn over rate to keep your fish healthy and your pond clear.

Aqua UV's Ultima II filter provides amazingly effective and efficient biological and mechanical filtration for Koi ponds.

• Easy Setup And Assembly
• No Blower Needed
• Just Minutes To Backwash
• Internal Jets Do The Work For You
• Unique Patented Media Design
• Does Not Channel or Clump Together
• 50 PSI Max
• 3" Side Mount Inlet and Outlet
• Dimensions: Approx 54" X 44-1/2"(diameter) (Plus Valve)

The Ultima II 60000 is designed for ponds up to 60000 gallons. The high flow rate allows you to circulate your pond once every hour, giving you the optimal turn over rate to keep your fish healthy and your pond clear.

The Ultima II BAF filter starts at 100,000 and 500 GPM Flow rate. The BAF has 6" flanged connections and a mainway in front for easy access and smaller footprint. There's an internal mainway seal to prevent leaks, accessible drain and influent manifold distribution to prevent clogging. Single-Bolt saddles allows for easy leveling. The tank is rated to 100 PSI.

The Ultima II is specifically engineered to meet the environmental demands of aquatic life. Our patented Ultima filter does the work of two, combining biological and mechanical filtration into one compact package.

The internal components are designed to accommodate high flow and heavy solids that occur naturally when aquatic life is present. The patented cyclonic action is generated by jets activated during the backwash cycle. This action blasts the media apart, then lifts and spins it, separating the waste and flushing it away.

The Ultima II patented tubular media design has the highest surface area on the market to grow beneficial bacteria. These bacteria break down fish waste, creating a safe healthy environment. During the backwash cycle, the media's design prevents clumping and protects beneficial bacteria. Independent laboratory and Field testing has shown the Ultima II out performs all other filters on the market.
