Pondmaster - Pond Filters

A garden pond filter for ponds up to 1,000 gallons, the Pondmaster 1000 can be used in conjunction with any submersible pump up to 500 gph flow.   Additional units can be connected for higher capacities.

This system features a unique handle that serves as an easy-to-use positive locking mechanism for the filter compartment. The Pondmaster 1000 has a quick disconnect fitting which enables it to be easily attached or removed from the pump.

Product Details:

• The Filter System eliminates suspended particles from below the water surface.
• Hooks the intake of most pumps equipped with an intake.
• The Filter System eliminates suspended particles from below the water surface
• Coarse polyester media provides mechanical filtration (included)
• Carbon media provides Chemical filtration (included)
• Quick and easy installation
• For use with Inline Pumps 200-700 Gallons per Hour that have an inline intake area
• No Liner Cutting, or Major Pond Alterations Necessary
• Convenient Handle for Taking Filter Out of Water
• 12" x 12" Size with Locking Handle
• Complete with 3/4" Tubing (1ft for connecting to pump) and Fitting
• In Pond Use Only
• Filter Rests on Bottom of Pond

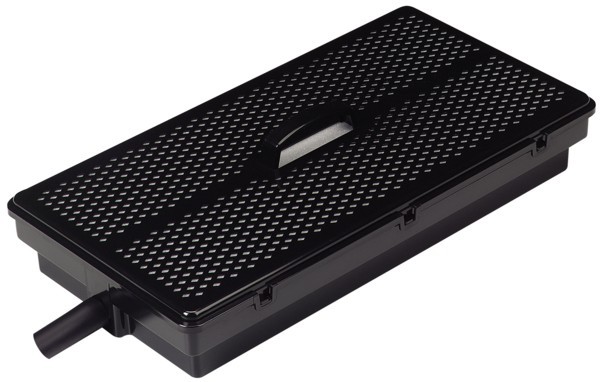

This compact, submersible filter system will keep your pond sparkling clean and healthy! Includes coarse and fine filter foam for removing large debris as well as area for beneficial bacteria to grow for biological filtration.

Space is provided for adding the filter media of your choice, such as carbon or zeolite for additional clarity or algae control. This powerful filter is good for a pond up to 2000 gallons.

Product Details:

• 12" x 24" filter box with carrying handle
• Polyester and biological foam inserts (suitable to hold other biological media)
• Connects to intake side of pump
• Complete with 1" I.D. tubing and fittings
• Connect more than one to a pump
• Medium to large ponds
• For in pond use only

Skimmer/Filter Submersible System - Suitable for ponds up to 2000 gallons

Cleans water two ways:

1. Automatic Self Adjusting Skimmer Basket removes debris from the pond
   surface quickly and completely.
2. The Filter System eliminates suspended particles from below the water surface.

FLOATING SKIMMER

• Self leveling Floating Skimmer adjusts to uneven pond bottom
• Aerates water which promotes fish health and activity
• Skimmer Basket
• Automatic self adjusting Skimmer Basket removes debris from the pond surface quickly and completely Allows for 6" of movement to accommodate water level fluctuation

The Filter System eliminates suspended particles from below the water surface
Flow Control Ring in cover of filter directs water to skimmer or filter
Coarse polyester media provides mechanical filtration (included)
Reticulated foam media provides biological filtration (included)
Versatile design accepts media such as stone, ceramics, and lava rock (not included).

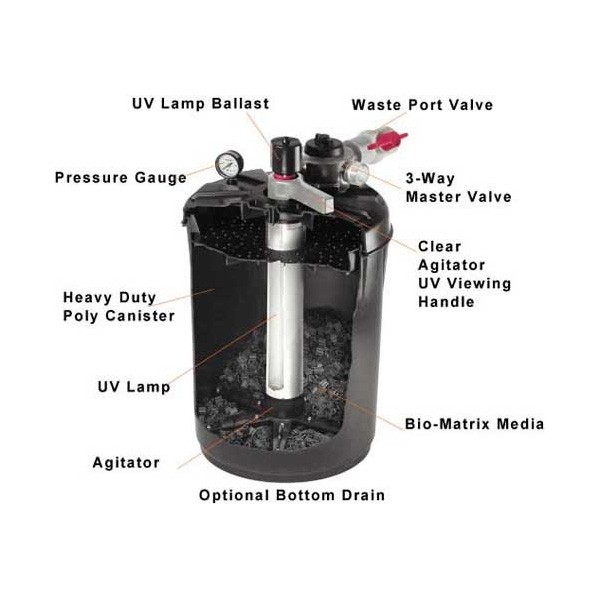

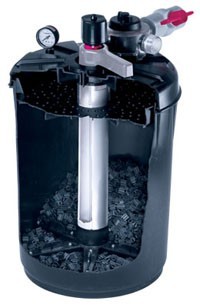

The Pondmaster Pressurized Filter System features a unique, manually operated agitator for dislodging over 90% of the pond residue that accumulates in the filter chamber.

This patent pending feature is employed during the backwash and rinse operation.

Product Details:

• Agitator unlocks waste from media saving  the amount of water discharged during backwash and rinse cycles.
• Unique, patent pending 3-way master valve locks into “run”, “rinse”, and “backwash” settings.
• Clear-vue inspection port to monitor water clarity during backwash/rinse operation.
• Positive pressure lock ring to ensure a tight water seal.
• Reusable Bio-Matrix Media affords maximum surface area for beneficial bacteria growth.
• Heavy duty poly canister can be buried for hidden installation.
• Optional field-installed bottom drain available (not included).
• Can be easily operated using a single energy-efficient magnetic-drive or similar pump. (not included).
• Does not require a high-pressure pump to back wash.
• 1000 Gallons Pond Capacity
• Integrated Pressure Gauge
• 1-1/2" MPT Inlet and Outlet
• Capable of withstanding up to 10 PSI in Pressure.
• 2000 GPH Max Recommended Flow Rate
• Dimensions: 20" High x 17" Diameter
• 1 Year Limited Manufacturers Warranty

The Pondmaster Pressurized Filter System features a unique, manually operated agitator for dislodging over 90% of the pond residue that accumulates in the filter chamber.

This patent pending feature is employed during the backwash and rinse operation.

Product Details:

• Agitator unlocks waste from media saving  the amount of water discharged during backwash and rinse cycles.
• Unique, patent pending 3-way master valve locks into “run”, “rinse”, and “backwash” settings.
• Clear-vue inspection port to monitor water clarity during backwash/rinse operation.
• Positive pressure lock ring to ensure a tight water seal.
• Reusable Bio-Matrix Media affords maximum surface area for beneficial bacteria growth.
• Heavy duty poly canister can be buried for hidden installation.
• Optional field-installed bottom drain available (not included).
• Can be easily operated using a single energy-efficient magnetic-drive or similar pump. (not included).
• Does not require a high-pressure pump to back wash.
• 2000 Gallons Pond Capacity
• Integrated Pressure Gauge
• 1-1/2" MPT Inlet and Outlet
• Capable of withstanding up to 10 PSI in Pressure.
• 3000 GPH Max Recommended Flow Rate
• Dimensions: 20" High x 17" Diameter
• 1 Year Limited Manufacturers Warranty
•

The Pondmaster Pressurized Filter System features a unique, manually operated agitator for dislodging over 90% of the pond residue that accumulates in the filter chamber.

This patent pending feature is employed during the backwash and rinse operation.

Product Details:

• Agitator unlocks waste from media saving  the amount of water discharged during backwash and rinse cycles.
• Unique, patent pending 3-way master valve locks into “run”, “rinse”, and “backwash” settings.
• Clear-vue inspection port to monitor water clarity during backwash/rinse operation.
• Positive pressure lock ring to ensure a tight water seal.
• Reusable Bio-Matrix Media affords maximum surface area for beneficial bacteria growth.
• Heavy duty poly canister can be buried for hidden installation.
• Optional field-installed bottom drain available (not included).
• Can be easily operated using a single energy-efficient magnetic-drive or similar pump. (not included).
• Does not require a high-pressure pump to back wash.
• 4000 Gallons Pond Capacity
• Integrated Pressure Gauge
• 1-1/2" MPT Inlet and Outlet
• Capable of withstanding up to 10 PSI in Pressure.
• 4000 GPH Max Recommended Flow Rate
• Dimensions: 26" High x 19" Diameter
• 1 Year Limited Manufacturers Warranty
•

The Pondmaster Pressurized Filter System features a unique, manually operated agitator for dislodging over 90% of the pond residue that accumulates in the filter chamber.

This patent pending feature is employed during the backwash and rinse operation.

Product Details:

• Agitator unlocks waste from media saving  the amount of water discharged during backwash and rinse cycles.
• Unique, patent pending 3-way master valve locks into “run”, “rinse”, and “backwash” settings.
• Clear-vue inspection port to monitor water clarity during backwash/rinse operation.
• Positive pressure lock ring to ensure a tight water seal.
• Reusable Bio-Matrix Media affords maximum surface area for beneficial bacteria growth.
• Heavy duty poly canister can be buried for hidden installation.
• Optional field-installed bottom drain available (not included).
• Can be easily operated using a single energy-efficient magnetic-drive or similar pump. (not included).
• Does not require a high-pressure pump to back wash.
• Integrated Pressure Gauge
• 1-1/2" MPT Inlet and Outlet
• Capable of withstanding up to 10 PSI in Pressure.
• 1 Year Limited Manufacturers Warranty
