Sequence - External Pumps

 These extremely durable pumps combine high efficiency, enclosed impellers and dry-run resistant seals with the latest in motor technology to provide many years of trouble-free and low-cost service. And with this being an external pump, it helps protect both you and your fish from annoying and potentially dangerous oil or electrical leaks.

• Out-of-pond construction - NOT Submersible!
• Less than half the watt draw of comparable submersible pumps
• Ports are 2" FNPT suction and 1.5" FNPT discharge.
• Units are pre-wired with an 8' cord and molded 115V plug.
• Units can now be wired for 230V.
• Housing is molded of high strength, glass filled polypropylene.
• Quiet operation
• Dry run resistant mechanical seals.
• Stainless steel hardware is standard.
• The motors are TEFC, for excellent protection.
• Motors are aluminum for added weather resistance.
• Rebuildable, industrial grade motors.
• Three year limited warranty!

Safety
Sequence pumps are end-suction centrifugal units, designed to be placed outside the pond or water. This means no devastating 'oil slicks', no dangerous electrical situations, and no messy wading or diving to service the unit. This protects you as well as your fish!

Motor Type
Our motors are totally enclosed for maximum protection. Their breakthrough design provides for ultra low watt consumption, along with low temperature rise.

Quality
Sequence pumps are manufactured in the USA of the best materials available. The motors are specially designed and custom built for long term continuous duty. Each Sequence pump is fully bench tested prior to shipping.

Efficiency
Sequence pumps produce a maximum flow rate with minimal electrical consumption. The money saved from lower operating costs, can pay for the pump in a matter of months.

Connections
Sequence pumps come in 2" MPT inlet and 2" MPT outlet.

Reliability
Sequence pumps are industrial grade equipment. When properly installed, they provide you with years of dependable, trouble free service.

For larger systems, Pond Parts offers the Sequence Primer series. With an oversized, integrated 250 cubic inch basket strainer, this unit is also self-priming. The high efficiency enclosed impellers ensure low cost, high flow performance for many years.

All Sequence Primer series pumps come with Baldor® motors, 8 foot cord with 115V molded plug and stainless steel hardware. All Sequence Primer series pumps are covered by a 3-year warranty.

The Sequence Primer can be wired for 115V or 230V.

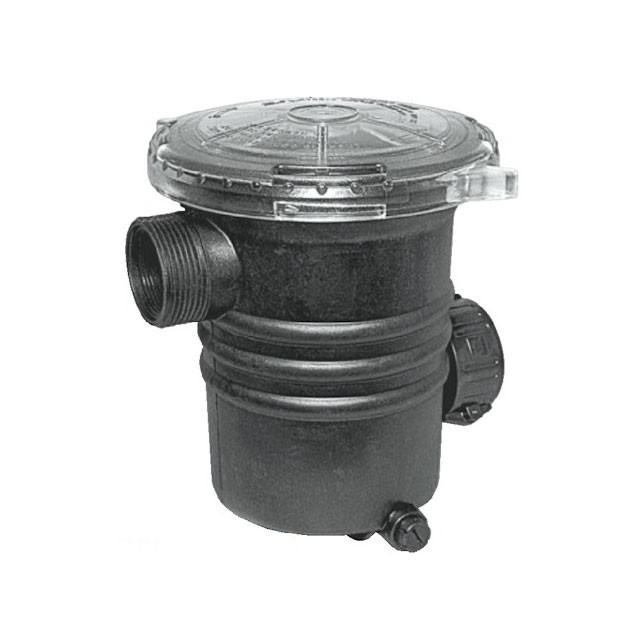

Priming Pot/Leaf Trap for External Centrifugal Pumps

• 1.5" MNPT Inlet Port/1.5" Slip Discharge Port
• 2.0" MNPT Inlet Port/2" Slip Discharge Port
• Works with the Sequence 750 Series and the PuriPumps

The strainer basket is designed to facilitate the priming of the pump and suction line. It is not designed to remove air from the suction line. This trap will also work as a strainer basket to trap leaves and debris. Use when your pump is mounted above the water level.

The strainer basket is designed to facilitate the priming of the pump and suction line. It is not designed to remove air from the suction line.

• 2" MNPT Inlet Port/2" Discharge Port
• Extra Large 500 Cubic Inch Capacity
• Works with the Sequence 1000 and Power Series pumps and Similar pumps
• May require schedule 40 fittings to hook up to your pump.

This trap will also work as a strainer basket to trap leaves and debris. Use when your pump is mounted above the water level.
