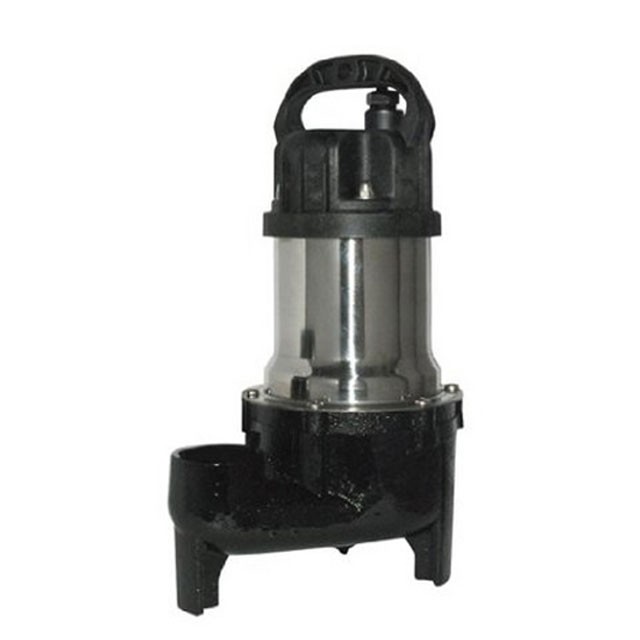

Little Giant - Submersible Pumps
|
|
|  Circulation is key to the success of any water garden. Little Giant Water Feature Pumps are designed to act as the heart of a pond, completely circulating water at least once per hour. This helps during filtration and provides a better living environment for aquatic and plant life. Constructed with stainless steel, cast iron and durable thermoplastic, the new solids-handling Little Giant submersible water feature pumps meet the rigorous demands of the most impressive waterfalls, ponds and streams. Includes 2-year warranty.
| Item number |
566066 |
566067 |
566068 |
566069 |
566070 |
| Model |
WGFP-15 |
WGFP-33 |
WGFP-50 |
WGFP-75 |
WGFP-100 |
| Max Head Height (Shut off) |
21' |
25' |
30' |
36' |
35' |
| Flow Rate |
|
|
|
|
|
| @ 5ft |
2300 GPH |
2500 GPH |
4280 GPH |
4890 GPH |
6400 GPH |
| @ 10 ft |
1700 GPH |
2000 GPH |
3520 GPH |
4345 GPH |
5500 GPH |
| @ 15 ft |
807 GPH |
1400 GPH |
2780 GPH |
3750 GPH |
4700 GPH |
| @ 20 ft |
127 GPH |
600 GPH |
1830 GPH |
3070 GPH |
3700 GPH |
| @ 25 ft |
- |
- |
800 GPH |
2260 GPH |
2500 GPH |
| Watts |
355 |
455 |
590 |
847 |
1210 |
| Amps |
4 |
5 |
7 |
8 |
12 |
| Volts |
115 |
115 |
115 |
115 |
115 |
| Horsepower |
1/5 |
1/3 |
1/2 |
3/4 |
1 |
| Cord Length |
19' |
19' |
19' |
19' |
19' |
| Dimensions |
12.44" x 7.32" |
12.66" x 7.75" |
13.85" x 8.78" |
14.44" x 8.78" |
17.35" x 10.29" |
| Weight |
15.2 lbs |
17.5 lbs |
24.8 lbs |
26.4 lbs |
38.2 lbs |
| Discharge |
1-1/4" FPT |
1-1/2" FPT |
2" FPT |
2" FPT |
2" FPT |
| Recommended Pipe Size for Max Flow Rate |
1-1/2" ID (May require adapters) |
1-1/2" ID (May
require adapters) |
2" ID (May require adapters) |
2" ID (May require adapters) |
3" ID (May require adapters) |
| Limited Warranty |
2 Years |
2 Years |
2 Years |
2 Years |
2 Years |
 | | Item # | Description | Price | Click To Order |
|---|
| 566066 | Little Giant WGFP-15 Water Feature Pump- 2300 GPH @ 5' | $ 177.80 |  | | 566067 | Little Giant WGFP-33 Water Feature Pump- 2500 GPH @ 5' | $ 285.60 |  | | 566068 | Little Giant WGFP-50 Water Feature Pump- 4280 GPH @ 5' | $ 325.50 | | | 566069 | Little Giant WGFP-75 Water Feature Pump- 4900 GPH @ 5' | $ 376.60 | | | 566070 | Little Giant WGFP-100 Water Feature Pump- 6400 GPH @ 5' | $ 424.90 | |
|
|  Little Giant Pond Pumps operate submerged are oil-less and are constructed with a corrosion-resistant plastic body. The Pump is specifically designed for water gardening applications but can be used for drainage applications. 16 Foot cord included. The pump is ideal for pond filtration and water effects. Easy to clean inlet screen, DUAL DISCHARGE (1-1/4") FNPT outlet (1-1/4" x 1") barbed elbow and cap included UL Listed 3 prong cord with ground. This pump is ideal for use in waterfall and stream applications, found in water gardens.
Features:
- Environmentally safe, oil-less
- Energy efficient
- Corrosion-Resistant body
- Dual 1-1/4" FNPT discharge (Includes 1-1/4" x 1" Barbed Elbow) or visit our fittings section for a 1-1/4" x 1-1/4" adapter.
- 1900 Gallons Per Hour (GPH)
- 16' cord
- 20' maximum lift
- Includes 1 1/4" MPT x 1" Barbed adapter
- 10"L x 8.1"H x 6.4"W
- Screened Intake
- 2 Amps Maximum (230 watts) - 115V - UL Grounded
- 1/3 hp
- 3 Year Limited Manufacturers Warranty
| Performance |
|
| 1' |
1900 gph |
| 5' |
1250 gph |
| 10' |
785 gph |
| 15' |
325 gph |
| 20' |
0 gph |
| | Item # | Description | Price | Click To Order |
|---|
| 566409 | Little Giant WGP-65-PW Pond Pump - Dual Outlets | $ 149.00 | |
|
|  Little Giant Pond Pumps operate submerged are oil-less and are constructed with a corrosion-resistant plastic body. The Pump is specifically designed for water gardening applications but can be used for drainage applications. 16 Foot cord included. The pump is ideal for pond filtration and water effects. Easy to clean inlet screen, DUAL DISCHARGE (1-1/4") FNPT outlet (1-1/4" x 1") barbed elbow and cap included UL Listed 3 prong cord with ground. This pump is ideal for use in waterfall and stream applications, found in water gardens.
Features:
- Environmentally safe, oil-less
- Energy efficient
- Corrosion-Resistant body
- Dual 1-1/4" FNPT discharge (Includes 1-1/4" x 1" Barbed Elbow) or visit our fittings section for a 1-1/4" x 1-1/4" adapter.
- 3500 Gallons Per Hour (GPH)
- 16' cord
- 29' maximum lift
- Includes 1 1/4" MPT x 1" Barbed adapter
- 11"L x 8.1"H x 6.4"W
- Screened Intake
- 5.85 Amps Maximum (673 watts) - 115V - UL Grounded
- 5/8 hp
- 3 Year Limited Manufacturers Warranty
Note: When using both discharge ports your flow rate from below will be cut in half.
| Performance |
|
| 1' |
3500 gph |
| 5' |
3240 gph |
| 10' |
2700 gph |
| 15' |
2100 gph |
| 20' |
1320 gph |
| 25' |
480 GPH |
| 29' |
0 GPH |
| | Item # | Description | Price | Click To Order |
|---|

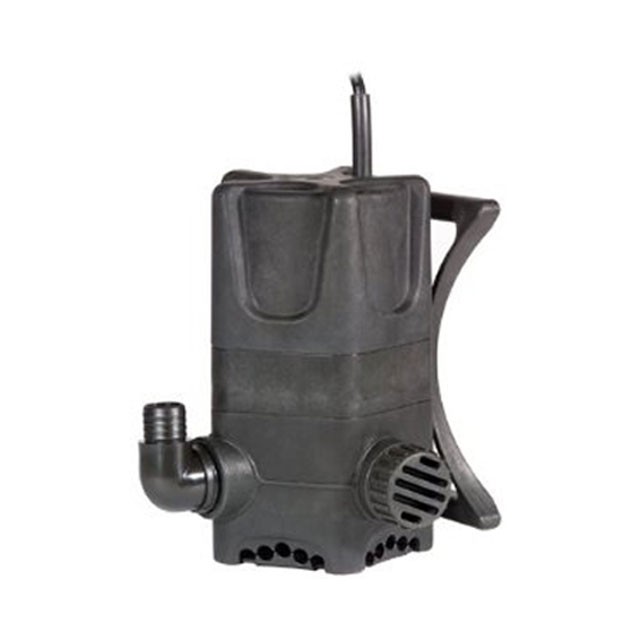

| 566417 | Little Giant Waterfall Pump - WGP80 | $ 156.00 | |
|
|  Little Giant Pond Pumps operate submerged are oil-less and are constructed with a corrosion-resistant plastic body. The Pump is specifically designed for water gardening applications but can be used for drainage applications. 16 Foot cord included. The pump is ideal for pond filtration and water effects. Easy to clean inlet screen, DUAL DISCHARGE (1-1/4") FNPT outlet (1-1/4" x 1") barbed elbow and cap included UL Listed 3 prong cord with ground. This pump is ideal for use in waterfall and stream applications, found in water gardens.
Features:
- Environmentally safe, oil-less
- Energy efficient
- Corrosion-Resistant body
- Dual 1-1/4" FNPT discharge (Includes 1-1/4" x 1" Barbed Elbow) or visit our fittings section for a 1-1/4" x 1-1/4" adapter.
- 4280 Gallons Per Hour (GPH)
- 16' cord
- 30' maximum lift
- Includes 1 1/4" MPT x 1" Barbed adapter
- 11"L x 8.1"H x 6.4"W
- Screened Intake
- 6.3 Amps Maximum (700 watts) - 115V - UL Grounded
- 5/8 hp
- 3 Year Limited Manufacturers Warranty
Note: When using both discharge ports your flow rate from below will be cut in half.
| Performance |
|
| 1' |
4280 gph |
| 5' |
4000 gph |
| 10' |
3500 gph |
| 15' |
2850 gph |
| 20' |
2200 gph |
| 30' |
0 GPH |
| | Item # | Description | Price | Click To Order |
|---|
| 566407 | Little Giant WGP-95-PW Pond Pump - Dual Outlets | $ 189.00 | |
|

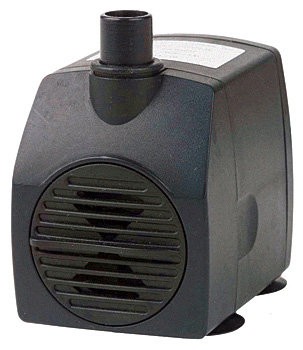

|  PondWorks statuary and fountain pumps are designed to enhance your water gardening experience, providing you with beauty and serenity through the sights and sounds of a waterfall, stream or fountain spray nozzle. The mag drive pumps are designed to operate with minimal energy consumption, resulting in low operation costs. The compact size is ideal for use in statuary and fountains of all sizes, as well as limited space applications. PondWorks statuary and fountain pumps are designed for submersible use and continuous operation, providing you with low maintenance and peace of mind. | | Item # | Description | Price | Click To Order |
|---|
| 566653 | Little Giant PES-300-PW Mag Drive Multi-Purpose Pond Pump | $ 71.00 | | | 566655 | Little Giant PES-500-PW Mag Drive Multi-Purpose Pond Pump | $ 91.00 | | | 566720 | Little Giant PES-700-PW Mag Drive Multi-Purpose Pond Pump | $ 107.00 | | | 566722 | Little Giant PES-1000-PW Mag Drive Pond Pump | $ 88.00 | |
|
|
|
| ©2006-2012
Pond Parts
•
Koi and Water Garden Websites •
Conditions of Use •
Copyright • Privacy Policy
|

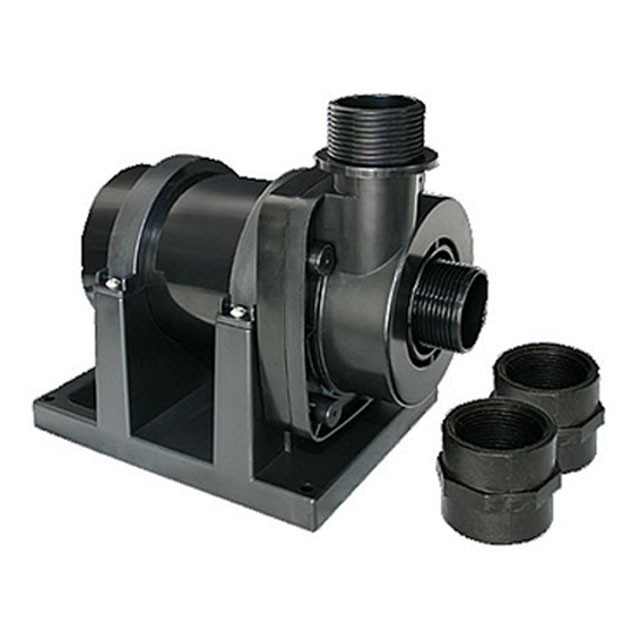

Franklin Electric offers the Little Giant® brand of Water Feature Pumps to exacting specifications for optimum efficiency and long life. Our new line of “flexible” water feature pumps are designed for in and out of pond use, and are constructed with stainless steel and durable thermoplastic. Plus, each pump meets the rigorous demands of the most impressive water features. There are five different sizes to match virtually any application for use in or out of water. Recommended for Koi and Goldfish ponds as well as features without fish. Use in conjunction with Little Giant skimmers and biological waterfall filters for a complete, ecologically balanced system. Best part is that Franklin Electric has put a 5 Year warranty on these pumps.
